Baoboab Mast Mount Structures

A range of Side-of-Pole and Top-of-Pole mounting structures are locally developed and manufactured by Solarite SA since 2005.


Top of Pole mounts

Mobirise Website Builder
TPM1160A

Panel size: 1x 50W-160W
Pole diameter: 50mm
Adjustable panel angle
Fits all solar panel brands

Coming soon: Single Axis tracking

Mobirise Website Builder

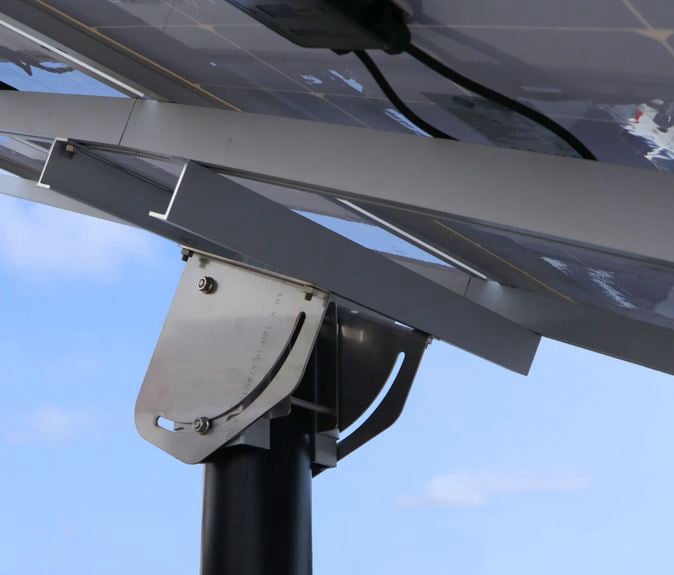

TPM1490A

Panel size: 1x 100W-490W
Pole diameter: 76mm
Adjustable panel angle
Fits all solar panel brands

Coming soon: Single Axis tracking

Mobirise Website Builder
TPM1600A

Panel size: 1x 500W-600W
Pole diameter: 76mm, 100mm
Adjustable panel angle
Fits all solar panel brands

Coming soon: Single Axis tracking

Light Duty Solar Panel Pole Mounts

Mobirise Website Builder

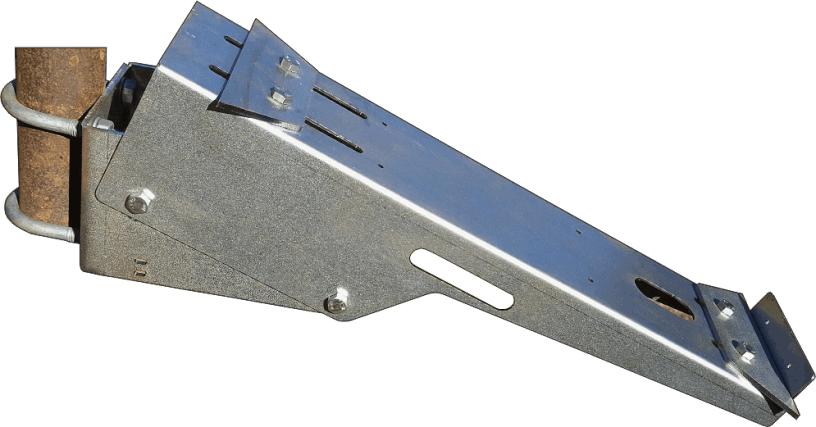

APM4020L

Stainless steel
Panel size: 1x 20W
Pole diameter: 40mm - 50mm
Fits all solar panel brands
Mounting holes for PWM charge controller.

Download
Mobirise Website Builder

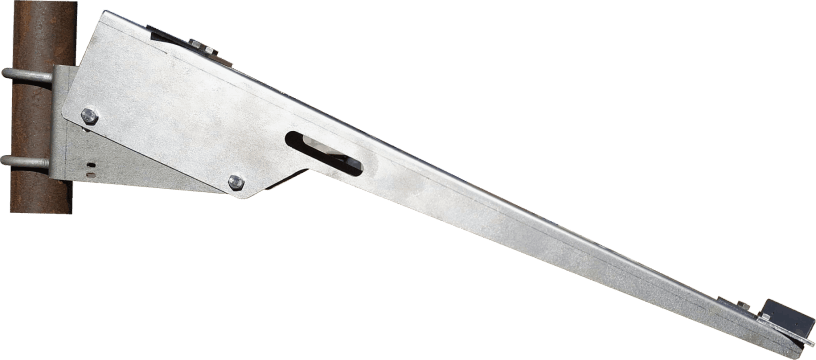

APM4030L

Stainless steel
Panel size: 1x 30W-50W
Pole diameter: 40mm - 50mm
Fits all solar panel brands
Mounting holes for PWM charge controller.

Download
Mobirise Website Builder

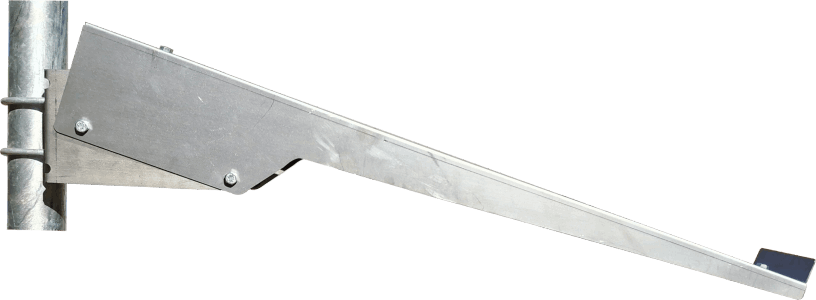

APM4150L

Stainless steel
Panel size: 1x 80W-150W
Pole diameter: 40mm - 100mm
Fits all solar panel brands

Download

Medium Duty Solar Panel Mast Mounts

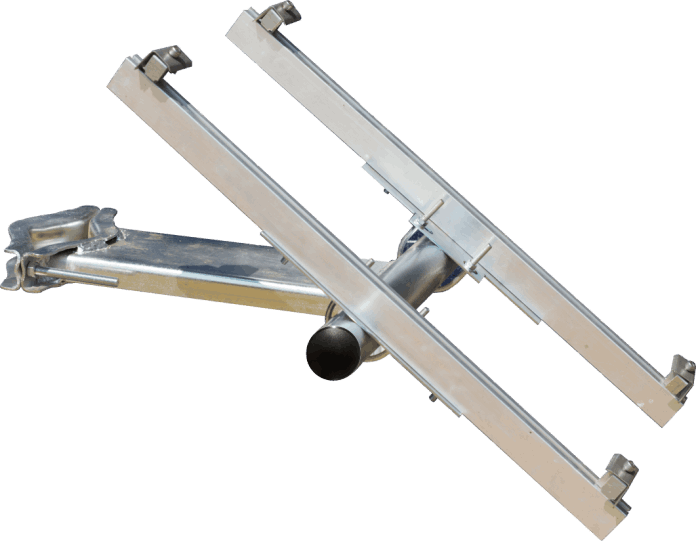

Solar Mast Mount 50 range

HDG T-Pole mount structure
Weight: 10.6kg
Pole diameter:100mm - 200mmØ
Fit to timber or steel poles

SMM1050G for 1x 50W-100W panel
SMM2050G for 2x 50W-80W panels

* For 76mm-90mmØ poles or for square poles, request the special flat plate

Download

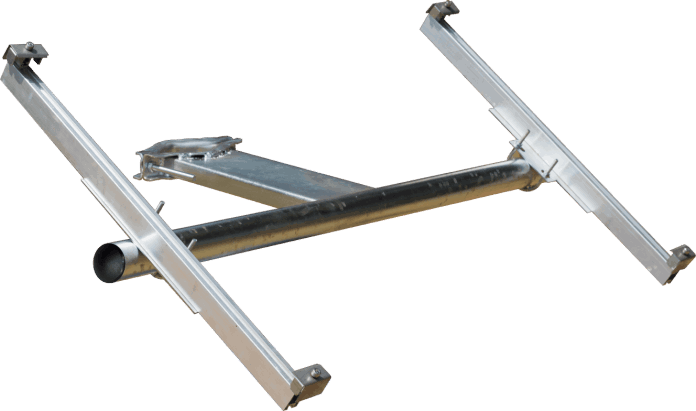

Solar Mast Mount 90G Range

HDG T-Pole mount structure
Weight: 11.1kg
Pole diameter: 100mm - 200mmØ
Fit to timber or steel poles

SMM1090G for 1x 100W-200W panel
SMM1091G for 1x 250W-490W panel
SMM2090G for 2x 100W-160W panels

* For 76mm-90mmØ poles or for square poles, request the special flat plate

Download

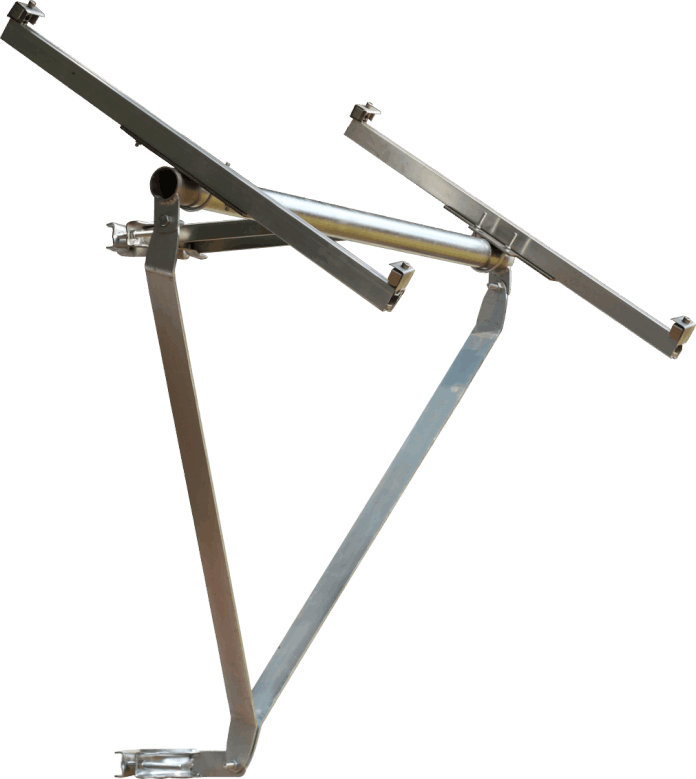

Solar Mast Mount 90S Range

HDG T-Pole structure with support arms
Weight: 19kg
Pole diameter: 100mm - 200mmØ
Fit to timber or steel poles

SMM1090S for 1x 100W-490W panel
SMM1092S for 1x 500W-620W panel
SMM2090S for 2x 100W-380W panels

* For 76mm-90mmØ poles or for square poles, request the special flat plate

Optional: 40m lighting mast pole brackets: 375mmØ

Download

Heavy Duty Solar Panel Mast Mounts

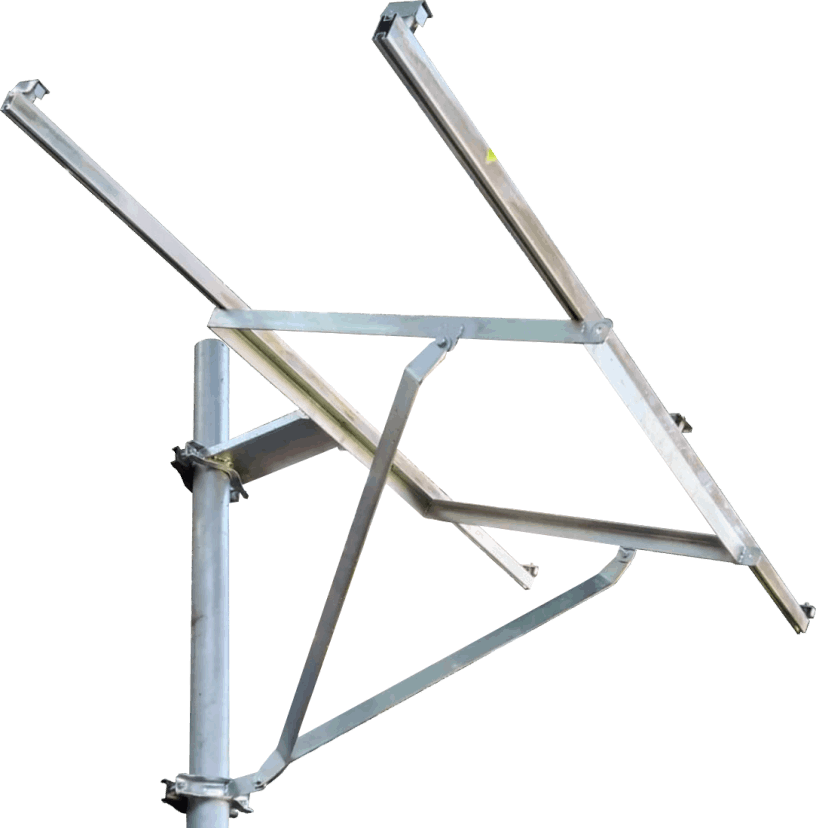

SMM1310S Square Mast Mount

HDG Square Frame structure
Panel size: 1x 180W - 700W
Weight: 31kg
Pole diameter: 100mm - 200mm
Fit to timber or steel poles

Optional: 40m lighting mast pole brackets: 375mmØ

Download
SMM2310S Square Mast Mount

HDG Square Frame structure
Panel size:  2x 180W - 700W
Weight: 34kg
Pole diameter: 100mm - 200mm
Fit to timber or steel poles

Optional: 40m lighting mast pole brackets: 375mmØ

Download

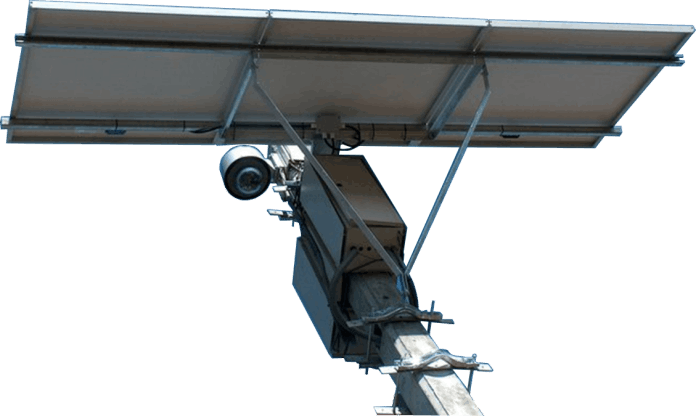

SMM3310S Square Mast Mount

HDG Square Frame structure
Panel size: 3x 180W - 700W
Weight: 55kg
Pole diameter: 100mm -  200mm
Fit to timber or steel poles

Optional: 40m lighting mast pole brackets: 375mmØ

Download
